MAC10 SERIES

FEATURES

SHIMAX DIGITAL TEMPERATURE CONTROLLER
* Space-saving design : Panel depth is 62~65mm (Vertical & Horizontal plural proximity
                                       attachment is possible.
* Accuracy                     : ± (0.5% FS +1 digit)
* Sampling Period         : 0.25s
* Input Signal                : Multi Input (T/Couple K or J type / RTD PT100 / 0~50mV), Current
                                        (4~20mA or 0~20mA)
* Output Control 1         : Contact, Voltage Pulse, Curruent
* Additional Functions   : Event output two points, Comm RS-485 MODBUS ASCII or
                                       MODBUS RTU
* Power Supply             : 100 ~ 264V AC

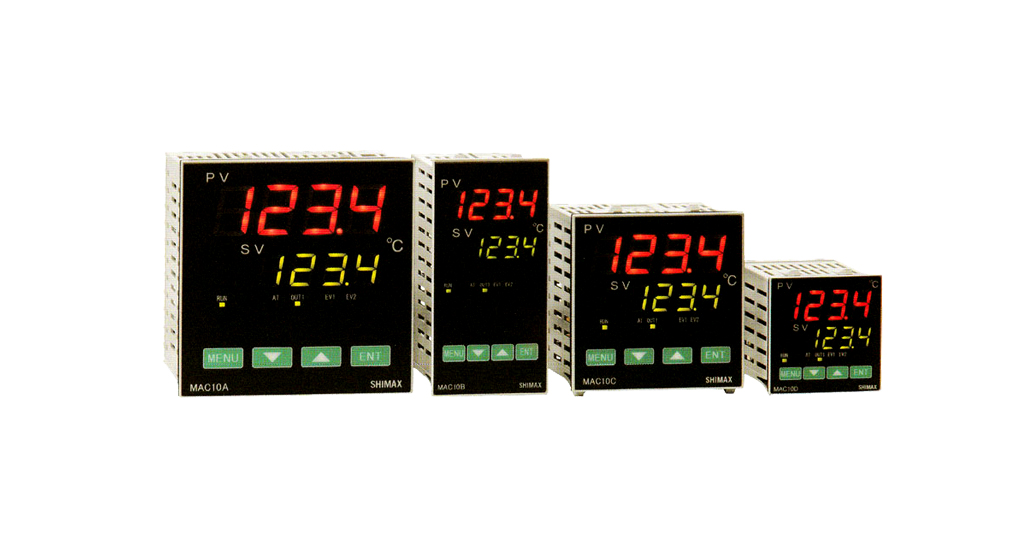

Model : MAC10A series  ( size : W96xH96xD69mm )
Model : MAC10B series  ( size : W48xH96xD62mm )
Model : MAC10C series  ( size : W72xH72xD69mm )
Model : MAC10D series  ( size : W48xH48XD62mm )
