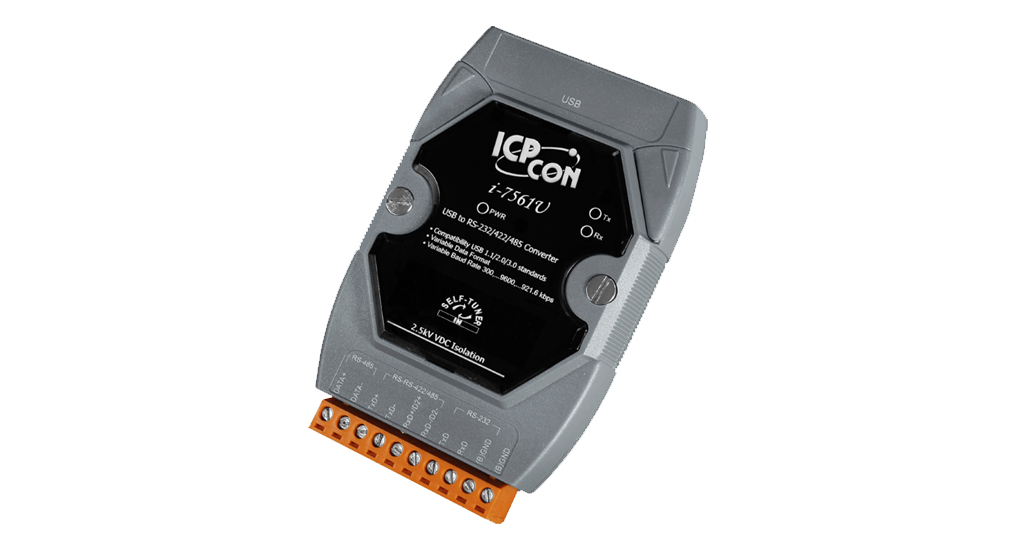

Converter I-7561U

USB to Isolated RS-232/422/485 Converter

Introduction

The I-7561 is a cost-effective module for transferring serial data via USB. It allows you to connect your serial devices to systems that use a USB interface. Connecting the I-7561 to a PC, you get one RS-232/422/485 port. Like the I-7520A, the I-7561 contains “Self-Tuner” chip auto-tunes the Baud Rate and data format to the RS-485 network.The I-7561 module derives its power from the USB port and doesn’t need any power adapter.

Features

  • Fully Compliant with the USB 1.1/2.0/3.0
  • 3000 VDC Isolation Protection on the RS-232/422/485 side
  • ESD Protection for the RS-232/422/485 Data Line
  • Transmission speed up to 921.6 kbps (For I-7561U)
  • No External Power Supply required
  • Automatic RS-485 Direction Control
  • Operating Temperatures, -25 °C ~ +75 °C
  • DIN-Rail Mounting
